Even though autonomous motoring – where the vehicle can operate and guide itself without human involvements – is still many years away, there are already a number of systems that can act autonomously to prevent accidents or reduce driving fatigue. For instance, automatic emergency braking activates if the driver does not take action in time to prevent a collision. Adaptive cruise control maintains a safe gap with a vehicle ahead by adjusting the set cruising speed.
These systems make use of cameras and radar to identify other vehicles and objects ahead, and a computer processes the data at super high speeds to determine if there is a dangerous situation. Technological advancements have seen the capabilities of the sensors increasing and accuracy of data becoming better and better. More sensors installed around the vehicle’s bodywork provide 360-degree coverage in the more advanced systems today.
Edaran Tan Chong Motor’s new Nissan Almera Turbo is beginning to appear on roads around the country in increasing numbers as new owners take delivery of their cars. Apart from the fresh new styling and turbocharged powertrain, the new Almera is also packed with many safety technologies which can contribute to helping reduce road accidents.
Nissan Safety Shield 360
These are the Nissan Safety Shield 360 technologies that work together to provide safety monitoring and intervening to prevent accidents when necessary. This follows the trend in the industry whereby driver assistance systems are being provided which use camera imagery as well as radar sensors to scan the road ahead. Additionally, there are sensors to scan the sides for vehicles in the blind spots, and towards the rear to aid reversing.
Standard on all Almera Turbo variants are the Intelligent Forward Collision Warning (IFCW) and Intelligent Forward Emergency Braking (IFEB) systems. The IFCW, operational at speeds between 5 km/h and 80 km/h, monitors the road ahead and alerts the driver when the car is too close to a vehicle ahead or there is a risk of collision.
Intelligent Forward Collision Warning ensures that a safe gap is always maintained when there is a vehicle ahead.
The alert is shown on the 7-inch Advance Drive Assist Display (ADAD), along with an audible alert. This means the driver should take steps such as decelerating or even braking to avoid the collision. However, if the driver does not take these actions, then the system will take over and activate the brakes automatically.
The early braking should prevent a collision or at least reduce the speed so that the severity is less, which can make repair costs less expensive. The brakes will remain locked for about 2 seconds after the car stops moving before being deactivated.
Alerting drivers behind
Incidentally, the Almera brake system has an Emergency Stop Signal function which can help to reduce rear-end collisions. If the brake pedal is pressed hard and suddenly, the hazard warning lights will come on automatically (besides the brake lights, of course). This will alert drivers behind that the car is decelerating very quickly under braking as they might not notice it right away. This will prompt them to also brake and slow down, and it could prevent the sort of multiple accidents on highways that we read about.
Watching the sides and rear
Other safety technologies available are the Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) systems. BSW is available from around 32 km/h and uses sensors to keep an eye on blind spot areas at approximately 3 metres x 3 metres towards the rear sides of the car. If the turn signal is activated and a vehicle is detected, the drive will be warned by sound as well as warning indicators on the ADAD and the relevant side mirror.
RCTA is a more recent safety system that is slowly appearing in cars. It is useful during reversing out of a parking bay when the driver’s view of either side might be blocked. The same rear radar sensors help to detect an approaching vehicle on either side and warn the driver with an audible alert and indicator on the side mirror where the vehicle is approaching from. This warning could help save an expensive accident!
Parking made easy
The Almera Turbo driver is also assisted by the Intelligent Around View Monitor (IAVM) with Intelligent Moving Object Detection (IMOD). This system (also offered in the X-Trail, Serena S-Hybrid and Navara) not only helps make parking easier but also watches out for moving objects nearby so that an accident does not occur.
The IAVM uses 4 tiny cameras installed on the bodywork and with the use of a computer program, the images are combined to create a simulated view of the car from above which shows all sides. It’s like having a drone overhead sending a video view to the display on the dashboard. The simulated image is detailed enough to show obstacles on the ground so the driver can avoid them and position the car precisely inside the parking bay.
Needless to say, the Almera Turbo has all the usual Active Safety systems like ABS with Brake Assist, Vehicle Dynamic Control with Traction Control, Electronic Brakeforce Distribution for balanced braking performance, and Hill Start Assist to enable confident moving off on slopes.
“The all-new Nissan Almera Turbo takes the popular B-sedan to a new level of refinement and enhancements not usually found in this segment. With the theme ‘Challenge All Beliefs’, the all-new Nissan Almera Turbo is not the Almera everyone knew before. It is completely redesigned to be energetic, provocative and engaging with its dynamic styling, confidence-inspiring performance and innovative technologies, that sets to challenge customers’ beliefs on what modern sedans should be,” said Christopher Tan, Sales and Marketing Director of Edaran Tan Chong Motor Sdn Bhd.
Test-drive and win an iPhone
Mr. Tan invites the public to try the new Almera Turbo at Nissan showrooms nationwide. “Those who take a test-drive stand a chance to win one of 5 iPhone SE mobilephones and also a chance to win prizes in the ‘Buy & Win’ Contest when they purchase and register the all-new Nissan Almera Turbo before December 31, 2020,” he said.
Until December 31, 2020, prices in Peninsular Malaysia (without insurance) range from RM79,906 to RM91,310 with sales tax exemption. After that, the sales tax of 10% will be included again and the prices of the three variants will be increased to between RM83,888 and RM95,888.
A 5-year unlimited mileage vehicle warranty comes standard, along with free scheduled maintenance for 5 times (alternating) during the first 5 years.
How often have you made a move to overtake a vehicle ahead, moved to the right lane – and got the blast of a horn from another vehicle behind? You quickly have to swerve back to your lane as the other car passes by with an angry driver glaring at you. Sometimes, you might even have looked in the mirror and not noticed any vehicle because it was in the ‘blind spot’ and if you are unlucky, a collision might occur.
That’s why many manufacturers now install a Blind Spot monitoring system which scans the rear three-quarter zone of the car, alerting the driver if there is another vehicle. It’s a valuable feature and could save expensive damage as well as injuries to others.
Ford has offered Blind Spot Information System (BLIS) technology on many models for more than a decade now. The system can alert drivers to the presence of vehicles in their blind spot using a warning light in the door mirror.
More advanced BLIS
Now, Ford is going further with a more advanced system – the new Lane-Keeping System with Blind Spot Assist. Besides monitoring the blind spot, the system can now also take pro-active action to discourage a lane-change manoeuvre if a potential collision is detected.
“Many drivers will at some point have been caught by surprise when another vehicle seemingly ‘appears out of nowhere’,” said Glen Goold, a programme engineer at Ford. “Lane-Keeping System with Blind Spot Assist is like having an extra pair of eyes in the back of your head, helping prevent just a second’s lapse in judgement from escalating into something more serious.”
Watching your back
While the original BLIS merely warned the driver, the new system applies a gentle force to the steering wheel to discourage drivers from changing lanes into the path of another road user and even guide the vehicle away from danger.
Radar sensors scan parallel lanes for vehicles up to 28 metres behind, 20 times per second, while the vehicle is moving at speeds from 65 km/h to 200 km/h. An intervention can be automatically activated if the control system senses a lane-change by monitoring road markings using the forward-facing camera, and the technology calculates that the two vehicles are on a collision course.
The Lane-Keeping System with Blind Spot Assist can intervene to help prevent collisions with vehicles approaching with a closing speed of up to approximately 30 km/h.
Looking forward as well
Along with Lane-Keeping System with Blind Spot Assist, Ford has also developed Intersection Assist technology. This uses the vehicle’s forward-facing camera, combined with radar, to monitor for potential collisions with oncoming vehicles at intersections. One study found that more than one in 10 severe accidents at junctions in Europe involved cars colliding with other cars, vans buses or trucks at cross-junctions.
The technology can automatically apply the brakes when travelling at up to 30 km/h to help prevent or mitigate the effects of accidents in scenarios where a driver is turning across the path of an oncoming vehicle, such as commonly encountered at junctions or small roundabouts.
Intersection Assist operates without the need to detect lane markings or kerbs. It can even intervene in carparks, worksites or other locations without clear markings or traffic priorities. Both technologies can operate in daylight and in darkness with headlights activated.
Ford has already introduced the two new technologies in Europe and will progressively add it to other models as time goes on. These join an already extensive range of safety technologies available in all Ford models, including pick-ups such as the Ranger.
Visit www.sdacford.com.my to know more about the safety features in Ford models available in Malaysia
In the automotive world, advances in technology are continuous. R&D keeps pushing towards the edge of the envelope in all aspects of car design to provide motorists with a better, safer and more enjoyable drive. However, it takes time for some new technologies to reach the consumer because they need to be thoroughly tested, especially in different and extreme conditions, to ensure that they are reliable and durable for the many years that a vehicle will be in use.
One example of the development of a technology advancement is the ClearSight Ground View in the latest Range Rover Evoque launched in Malaysia recently. This technology, known as the ‘Transparent Bonnet’, was first shown to the public as a feature on the Land Rover Discovery Vision Concept at the 2014 New York Auto Show. It was among the pioneering technologies from Jaguar Land Rover’s advanced research division.
The Discovery Vision Concept displayed in 2014 gave a preview of technologies that Land Rover and Jaguar were developing.
The idea behind the ClearSight Ground View was to make the bonnet ‘invisible’ so that the driver would see the ground ahead – certainly something useful in off-road driving. At that time, it seemed like just ‘concept car stuff’… something fantastic to wow the visitors with but perhaps not really possible to commercialise.
The original concept had image projected on the windscreen like a Head-Up Display but this approach was probably too expensive.
But Land Rover was actually going to offer such a technology in its vehicles, starting with the Range Rover Evoque. It would be a world-first technology that would make driving over difficult terrain safer. Tree stumps, rocks, potholes and other hazards on the ground ahead under the vehicle would be visible so avoiding action could be taken earlier.
How it works

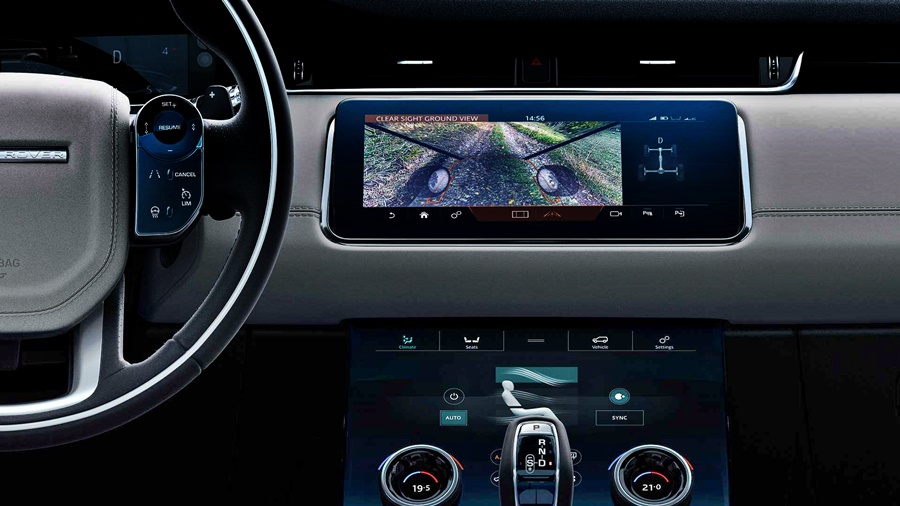

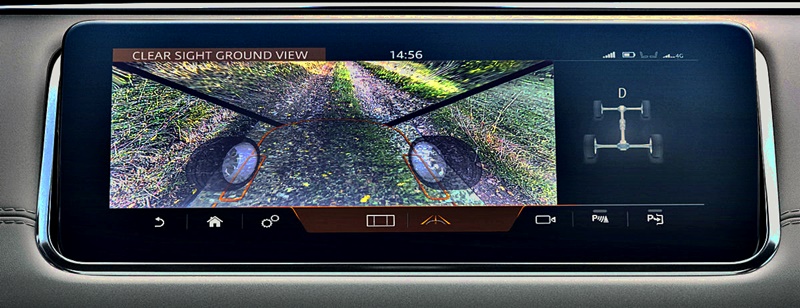

ClearSight Ground View uses cameras in the front grille and on the door mirrors for real-time imagery of the ground ahead. The coverage by the cameras is1 80 degrees forward at speeds up to 30 km/h.
A computer program creates a virtual representation of the terrain ahead, an augmented view of reality to help the driver tackle anything from the toughest off-road route to the tight confines of an urban car park.

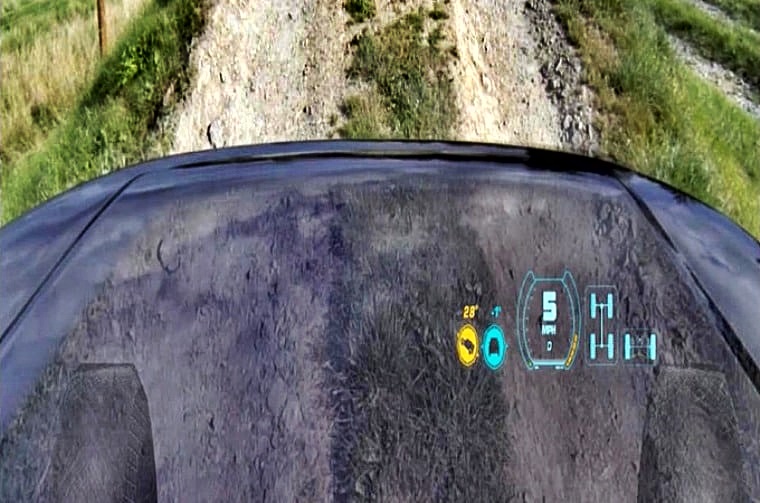

The original concept of the Transparent Bonnet had the image projected onto the windscreen ahead of the driver, the same way as a Head-Up Display is projected. However, that would be a more expensive approach so to moderate costs, the image is shown on the large centre Touchscreen.
For better situational awareness
ClearSight Ground View is complemented by the 360° Surround Camera and ClearSight Rearview Mirror to greatly expand the driver’s situation awareness of what’s around the vehicle. The 360° Surround Camera gives a digitally created image from directly above the vehicle using four tiny cameras around the vehicle body The images are stitched together by a computer program to create the view that is like what might be seen from a drone hovering a few metres above.

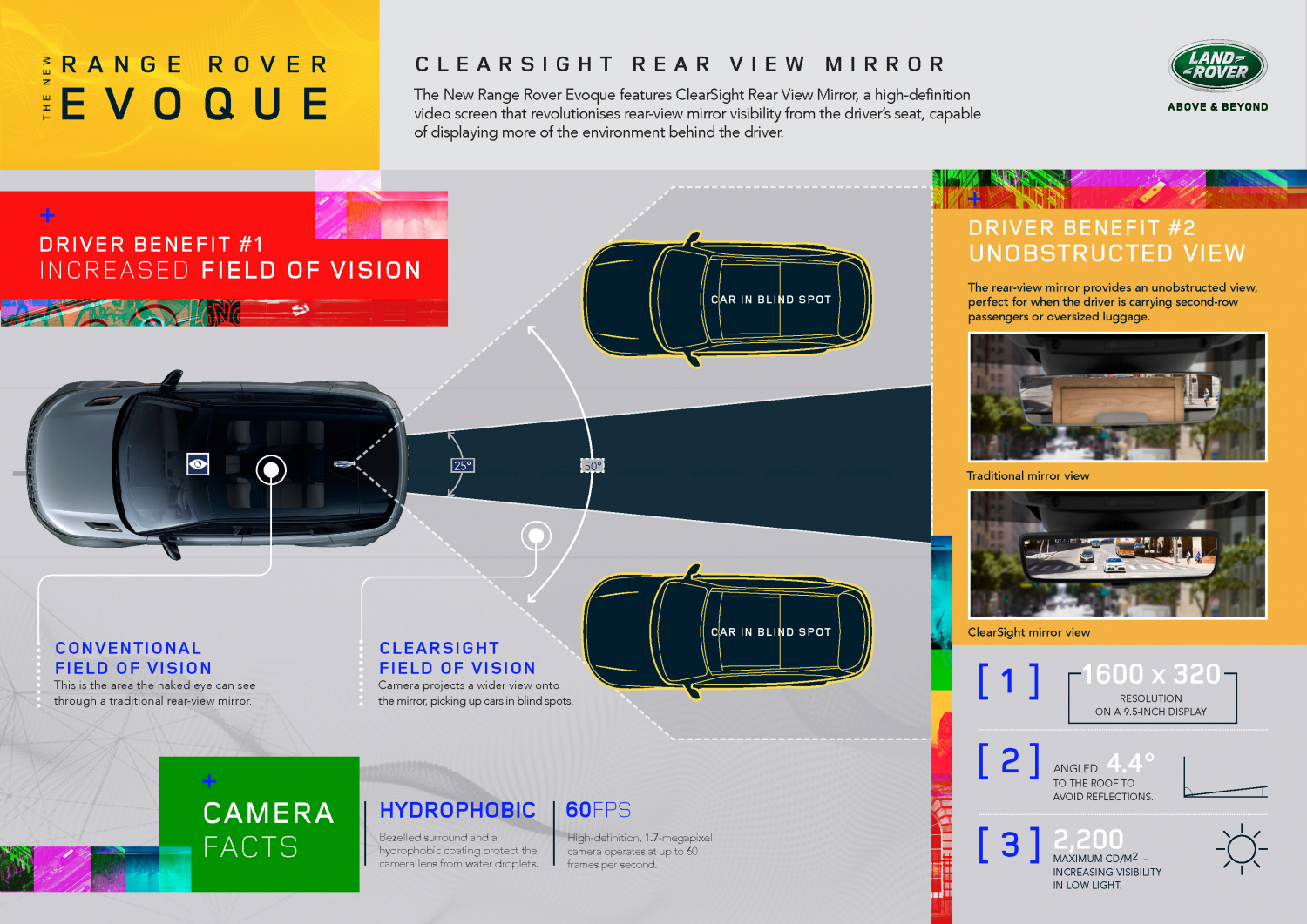

ClearSight Rearview Mirror is a more versatile rearview mirror which incorporates HD imagery. In normal use, it operates like a conventional rearview mirror, providing a clear and dazzle-free view of the back of the vehicle. When required, a flip of a switch on the underside changes its view to that of a digital image from a camera in the rear door with a wider field of vision.
Most rearview camera systems mounted on the rear door often use a fish-eye lens to get the widest possible coverage. However, in many cases, the image is distorted which can make judging distances difficult.

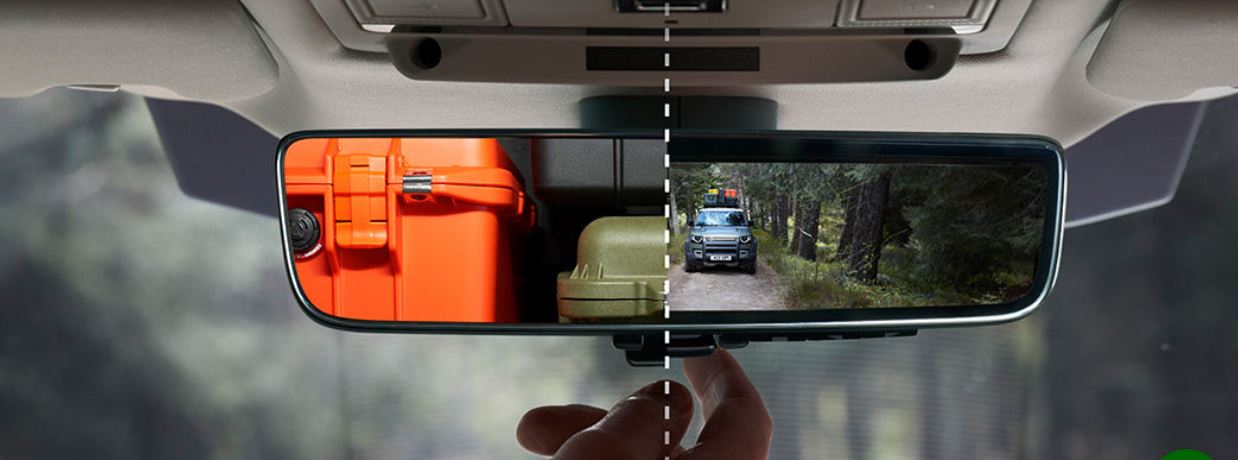

The ClearSight Rearview Mirror image has a proportional and undistorted view and besides being also capable in low light conditions, its brightness can also be adjusted. Furthermore, by displaying a rear-facing camera feed onto the mirror, the driver’s view remains unrestricted by passengers or large items in the back.
Until the mid-1990s, mention of ‘ESP’ would have had people thinking about Extra Sensory Perception, which is what those letters usually referred to. ESP was related to psychic abilities where some people could sense something that others could not, especially events that might happen. After 1995, though. ESP came to mean something else and interestingly, it also referred to a new innovation that could ‘sense’ something about the happen.
The modern ESP is Electronic Stability Program (also known as Electronic Stability Control, Vehicle Stability Assist or Vehicle Stability Control by some manufacturers) and it is a computerised system which can help prevent a car from skidding out of control, especially when taking a corner. Developed by Bosch and Daimler-Benz, it was first introduced almost 25 years ago in the Mercedes-Benz S-Class.
Since then, ESP has been keeping vehicles safely on track, especially on slippery surfaces, and Bosch accident researchers estimate that in the EU alone, the system has saved some 15,000 lives over the past 25 years. Together with the seatbelt and airbag, ESP is one of the most important life-savers in a vehicle.
“The development of ESP was a milestone on the path to our ‘vision zero’ of no more road deaths,” says the Bosch board of management member Harald Kroeger. “ESP is an outstanding example of what we mean by ‘Invented for life.”
The innovation may be 25 years old but Bosch has continuously improved it to function more effectively and respond to potential accidents more quickly. Over 250 million ESP systems have been produced and most modern cars have it. According to Bosch, 82% of all new vehicles are equipped with ESP today, with even lower-priced models getting it.
Preventing up to 80% of all skidding accidents
Especially when roads are wet and slippery, when evading unexpected obstacles such as animals on the road, and also when driving into a bend too fast, ESP gores into action automatically. It combines the functions of the ABS system and the traction control system with additional inputs to stabilize the car as it is about to go out of control. Various sensors can detect vehicle skidding movements and actively counteracts them.
Up to 80% of all potential accidents due to skidding can be prevented although it must still be kept in mind that the laws of physics still apply. There are limits where the system will not be able to help if speeds are too high, overwhelming even the grip of the tyres.
The system uses information about vehicle dynamics to detect whether the car is heading in the direction the driver is steering. If there is a discrepancy between these two factors, ESP intervenes. This may sound simple but it is in fact a complex process.
Smart sensors help compare steering angle and vehicle trajectory 25 times a second. If the two diverge, ESP reduces engine torque and brakes individual wheels. In this way, the system helps the driver prevent the vehicle from breaking away or skidding – effectively avoiding loss of control that can lead to an accident.
Breakthrough following the elk test
The story behind this innovation is a long one. It started in the 1980s with initially independent efforts by Bosch and Daimler-Benz to achieve more vehicle stability. The legendary ‘elk test’ of 1997 helped the system achieve a breakthrough: during tests for a Swedish automotive magazine, a Mercedes Benz A-class tipped over when making an abrupt evasive manoeuvre. Mercedes-Benz responded by quickly making ESP standard equipment.
The extreme instability of the A-Class (left) in what was known as the ‘elk test’ – basically a high-speed evasive manoevre – led Mercedes-Benz to install ESP in all its models.
Mercedes-Benz driving courses for owners often given them the chance to experience the benefits of ESP in high-speed lane-change exercises.
Safety authorities have also recognized the benefits of ESP and made it a mandatory feature of vehicles in some parts of the world. As the volume of systems has continuously risen, the cost has dropped to make it possible to offer even in low-priced models. Data from Europe shows that if the proportion of vehicles featuring the system rises, accident numbers fall.
With many accidents occurring due to a driver not seeing another vehicle or motorcyclist in his vehicle’s ‘blind spot’, many carmakers have installed blind spot monitors which scan along the sides of the vehicle. When the sensors detect another vehicle nearby, the driver is alerted by warning lights on the door mirrors, or on the mirror mount inside the vehicle. Some systems may also use sound although this is often found to be too intrusive and irritating.
Honda has a good system called Lane Watch which uses a small camera on the left (or right) side of the vehicle to show real-time imagery. The image is displayed on the screen in the dashboard and the advantage of this is that the driver does not have to turn the head so much. With a mirror-mounted warning system, the driver has to have his head turned to the right to notice the flashing light.
Now Kia has gone further with such a driver aid with its new Blind-Spot View Monitor (BVM) technology. This ‘second pair of eyes’ for drivers is designed to enhance driving safety by providing a good view of both the left and right blind spots of the vehicle. The view is shown within the instrument panel so the driver does not need to swivel his head.

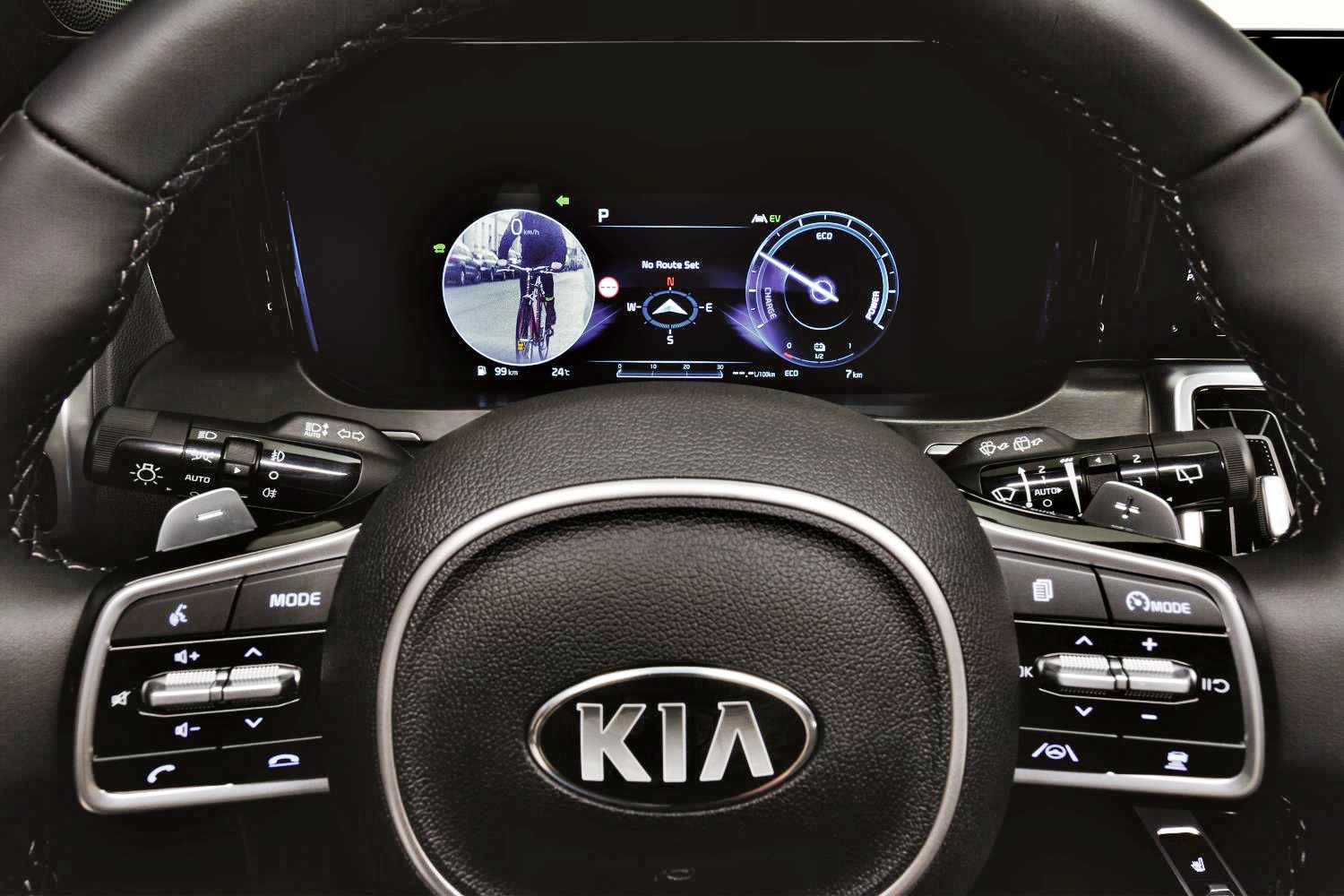

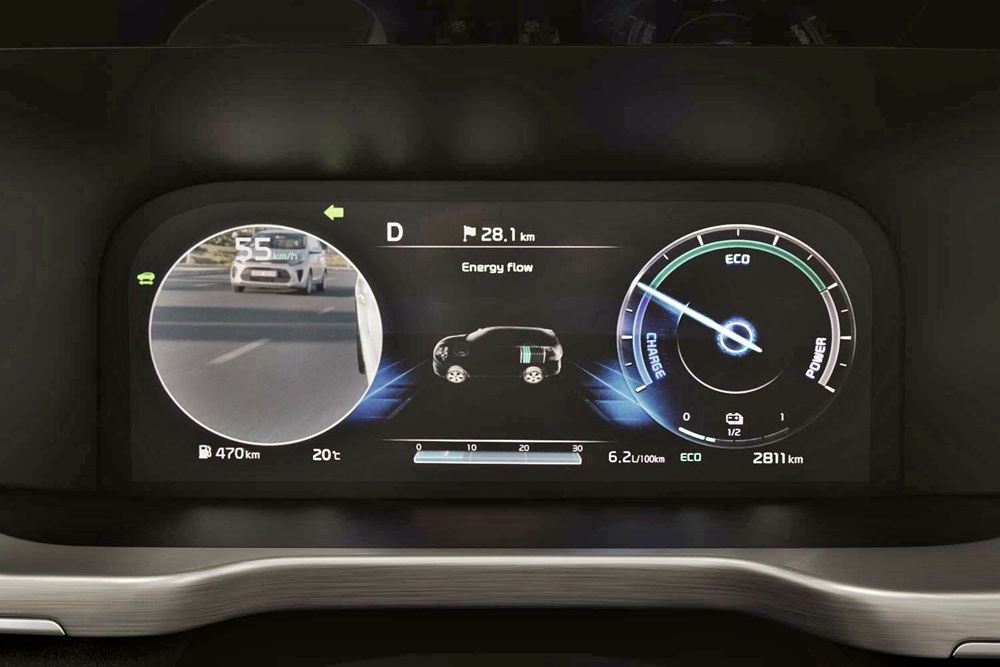

This advanced driving assistance feature, activated whenever the driver uses the turn signal, displays a high-resolution video feed on the left or right side of the TFT-LCD instrument cluster. The video of the blind spot briefly takes the place of either the speedometer or tachometer display while still showing the driver the vehicle’s current speed.

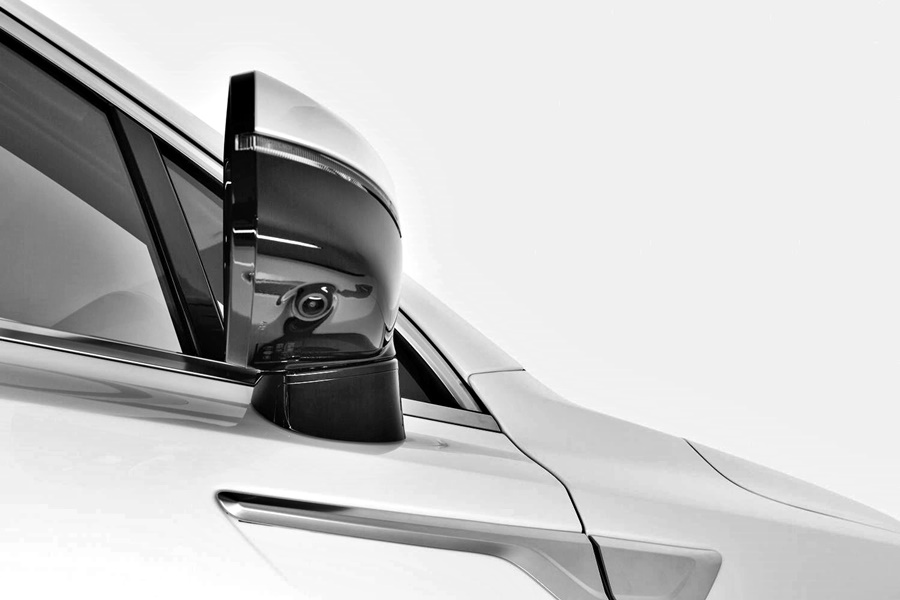

The video feed comes from discreet wide-angle, high-resolution cameras, one hidden in each of the door mirror housings. These provide a wider viewing angle than the mirrors themselves to give drivers a clear view of other vehicles or motorcyclists coming up alongside
The BVM is one of a range of functions on the fully-digital ‘Supervision’ 12.3-inch instrument cluster of the latest Sorento. Other systems include a Surround View Monitor and Parking Collision-Avoidance Assist, along with Blind-Spot Collision-Avoidance Assist.
The ‘Supervision’ digital instrument cluster is designed to deliver information to the driver as clearly as possible. With a high-definition 1920 x 720-pixel display, the digital cluster replaces conventional speedometer and tachometer dials with a single, seamless display, incorporating pin-sharp digital dials for road and engine speeds.
A multi-function display between the dials displays turn-by-turn GPS navigation instructions, audio information, and in-depth trip information, as well as vehicle diagnostics alerts, and pop-up notifications linked to the car’s various active safety and driver assist technologies.
Human beings have two eyes to view their surroundings as they drive, sending images to the brain which then makes the necessary decisions to brake or avoid hazards. When an on-board computer takes over the entire job of operating an autonomous car, two ‘eyes’ are not enough and a third sensor is needed. The first two eyes – already in use – are the camera and radar and the third is a long-range lidar sensor for light detection and ranging.
Bosch has a production-ready lidar system that is suitable for automotive use. This laser-based distance measurement technology is indispensable for driving functions at SAE Levels 3 to 5 (the different levels of autonomy). The new sensor will cover both long and close ranges – on highways and in the city.
By exploiting economies of scale, Bosch aims to reduce the price for the sophisticated technology and make it affordable for the mass market. “By filling the sensor gap, Bosch is making automated driving a viable possibility in the first place,” said Bosch Management Board Member, Harald Kroeger.
Alert to all automated driving situations
Only the parallel deployment of three sensor principles ensures that automated driving will offer maximum safety when it is available. This has been confirmed by Bosch analyses, where developers investigated all use cases of automated driving functions – from highway assist to fully automated driving in cities.
For example, if a motorcycle approaches an automated vehicle at high speed at a junction, lidar is needed in addition to camera and radar to ensure the reliable sensing of the two-wheeler. In this instance, radar can struggle to detect the bike’s narrow silhouette and plastic fairings. Moreover, a camera can always be dazzled by harsh light falling on it. As such, there is a need for radar, camera, and lidar, with the three technologies complementing each other perfectly and delivering reliable information in every driving situation.
Lidar is an essential element
We can think of laser as a ‘third eye’: in lidar systems, the sensor emits laser pulses and captures the laser light that is scattered back. The system then calculates distances based on the measured time it takes for the light to bounce back. Lidar offers very high resolution with a long range and a wide field of vision. As a result, the laser-based distance measurement tool can reliably detect even non-metallic objects at a great distance, such as rocks on the road. This means there is plenty of time to initiate driving manoeuvres such as braking or swerving.
At the same time, using lidar in vehicles exposes the lidar system’s components, such as the detector and the laser, to many stresses – above all, with regard to temperature resistance and reliability over the vehicle’s entire lifetime. Because Bosch can draw on its sensor expertise and systems know-how in the fields of radar and camera technology when developing the lidar, the company can ensure that all three sensor technologies dovetail with each other.
Lidar will work with the cameras and radar to provide the computer with more comprehensive imagery ,
“We want to make automated driving safe, convenient, and fascinating. In this way, we will be making a decisive contribution to the mobility of the future,” said Kroeger. Bosch’s long-range lidar will fulfil all safety requirements for automated driving as well as enable automakers to efficiently integrate the technology into a very wide range of vehicle types in the future.
Artificial intelligence makes systems even safer
Recently, Bosch engineers succeeded in taking the camera technology used in cars to a new level by enhancing it with artificial intelligence. The camera technology detects objects, categorizes them into classes such as vehicles, pedestrians, or bicycles, and measures their movement. In congested urban traffic, the camera can also recognize and classify partially obscured or crossing vehicles, pedestrians, and cyclists quickly and reliably. This allows the vehicle to trigger a warning or an emergency braking manoeuvre as required.
The engineers are also continuously refining radar technology. The latest generation of Bosch radar sensors is even better at capturing the vehicle’s surroundings – even in bad weather or poor light conditions. Their greater detection range, wide aperture, and high angular separability are the basis for this improved performance.
