CX-30

The Mazda CX-30 was introduced in 2019 as a model that sits in between the CX-3 and the CX-5. This made good sense for those who found the CX-3 to be too small and the CX-5 to be too big.

And before you ask why Mazda didn’t simply call it the CX-4, well the company already has a CX-4 model in its line-up but that is a China specific model. So to avoid confusion, it chose the easier route of calling the new model the CX-30 instead.

But why does the CX-30 need to exist at all when there is already a small SUV in Mazda’s line-up? The CX-3 is a small SUV while the CX-5 is better suited for family’s, so Mazda thought there may be room in between the models. And they may have been right.

But there’s the small issue of price. There are four variants of the CX-30 on offer, with prices starting from RM131,409 for the entry level model, up to RM161,409 for the flagship model. The model we tested here is the second best and is called the High+ (pronounced as high plus). It is priced at RM159,409, which may be a little difficult to stomach for such a small car.

However, Mazdas have never been known to be cheap, in the past two decades at least. They have however been known to be well-built, well-specified and well-engineered. And that is what the CX-30 has to offer.

But why would you want to spend so much on a small car when there are others that offer so much more for less? Cars like the Mazda CX-5, Honda HRV, Toyota Corolla Cross and even the Proton X70 are probably better buys in terms of spaciousness and overall features.

But that would be missing the point of the Mazda CX-30.

The Mazda may be small, but it packs a mighty punch. Newer generation Mazdas are some of the nicest cars to drive thanks to a technology called G-Vector Control (GVC).

But before delving deeper into the tech, it is worth noting that Mazda is a car company for enthusiasts, and builds cars that focus as much on driving pleasure as it does on passenger comfort and safety. Let’s not forget that this is the same car company that has built some of the greatest cars in the history of the automobile, cars like the MX-5 and RX-7.

At the very core of every Mazda built is the principle of ‘Jinba Ittai’ – the unison of horse and rider coming together as one. This is to give the rider complete control of the horse through the reins. And in a Mazda, the control comes through the steering wheel and tech like GVC.

The engineering behind the system is mind blowing, complex and will need an entire article by itself to explain. But for simplicity’s sake, the system works by maximizing steering input, making the car feel sharper and more eager to turn in. This also means that you only need minimal steering input to achieve the same result as you would in a car without GVC. The result is a car that feels more agile and responds to every input from the driver instantaneously.

The CX-30 High+ model also comes with steering mounted shifter pedals. This further adds to the sporty character of the CX-30 – giving you absolute control over the powertrain of the car and letting you decide which gear you want to be in when you go into full attack mode.

Having said that though, the power figures are not exactly that impressive. The 2.0-litre engine makes 162hp at 6000 rpm and 213Nm of torque at 4000rpm. Power is sent to the front wheels through a six-speed automatic gearbox.

Power delivery takes time as is typical of a naturally-aspirated engine. Since most of the power is made at the upper end of the rpm bandwidth, you have to wring out the engine and wait for it to come alive.

But when it does come alive, that is where the CX-30 is at its finest. The combination of power and control makes it quite fun in corners. However, that joy is quickly let down by the torsion beam rear suspension that makes the rear feel unsettled.

On that point though, the CX-30 is not exactly a sports car, though it def feels great to drive, it does a better job as a daily commuter that keeps its occupants comfortable.

If you’re not familiar with Mazda cars, the interior might feel a little understated and minimalist. The interior of the CX-30 is the same. It is devoid of anything that will take your breath away.

Instead, what you get is a purposeful interior that prioritises the important things. The quality though is top notch. There’s plush leather and soft touch plastics everywhere around the interior, and this makes the interior feel more expensive than what it actually is.

The seats are comfortable and supportive, and space is especially impressive for the front passengers. While the CX-3 can feel cramped, the CX-30 feels generous in terms of spaciousness.

The rear seats though still feel cramped. Taller passengers will be hard done to be comfortable and even toddlers in their Isofix mounted child seats may find their legs sandwiched in between the front seats.

To top it off, there is no USB port for rear passengers, not even an auxiliary power outlet.

And there in lays the problem with the CX-30. It may be a good-looking car that is fun to drive with a decent powertrain. But it is an expensive small SUV and does not quite prioritise the utility part of an SUV with its small-ish interior.

In fact, its sibling the Mazda CX-5 2.0G High may be the better buy than the CX-30 High+ from within Mazda Malaysia’s own stable of cars. The CX-5 2.0G High costs a little under RM157,000 and it has most of what the CX-30 High+ has to offer, including spaciousness.

Just like the CX-30, the CX-5 too is a fun car to drive and because of the taller ride height, it might just be better to drive for those who need to prioritise spaciousness, i.e. families.

However, in defense of the CX-30 High+, it does come with quite an impressive list of features such as an adaptive front-light system and adaptive LED headlamps that turns the light according to the angle of the steering wheel, there’s also a complete Advanced Safety Technologies that include adaptive cruise control, lane departure warning, blind spot monitoring and a lot more. All designed to keep the driver and passenger safe in all situations.

So if the CX-30 High+ picks your curiosity but you find it expensive, perhaps the price of the entry level Standard model may be easier to digest. It does not have all that the High+ variant has to offer, but it is RM20,000 cheaper. Perhaps that might be the model to consider if the CX-30 is what whets your appetite. Otherwise, the CX-5 is the better buy.

Specifications

Engine: 2.0-litre, DOHC, 16-Valve, 4-Cylinder with VVT

Power: 162hp@6000rpm

Torque: 213Nm@4000rpm

Transmission: 6-speed with Manual Shift Mode

Suspension: MacPherson Struts (Front) Torsion Beam (Rear)

Price: RM151,409

We like: Style, interior quality

We don’t like: Pricey

Bermaz Motor has launched the Mazda CX-30, its third locally assembled model after the CX-5 and CX-8. The CX-30 is the final model that was in the plan announced four years ago relating to new investments and local assembly by the company as it moved forward. It was the next step for Mazda Malaysia, the joint venture between Mazda and Bermaz formed in 2012 to oversee local production, distribution and exports to other ASEAN countries.

In 2019, Mazda upgraded the ‘plant within a plant’ at Inokom in Kedah with an investment of RM200 million, which raised production capacity from 30,000 to 50,000 units. Mazda production at Inokom shares some of the facilities but also has a dedicated area (including its own paintshop) for assembly of its own products, hence the ‘plant within a plant’ description.

The roll-out of the CX-30 was actually scheduled a bit earlier but the global COVID-19 pandemic impacted all industries and time-frames had to be revised due to extended periods of lockdown. However, the CBU (completely built-up) version was already being sold since 2020.

(more…)

In recent years, as the popularity of SUVs (especially the smaller ones) increased, many importers have focussed more on variants with only 2WD. These are usually cheaper, and customers don’t really care about whether two or all four wheels are powered. They’re more interested in the high seating position and perhaps the ground clearance, as well as interior utility.

However, there are also those who feel that 4WD or All-Wheel Drive (AWD) should be present in SUVs, just like they were in earlier years. Never mind that they might not actually go off-road, the presence of AWD added a degree of stability and grip, especially on wet roads.

Mazda CX-30

Mazda CX-30

When Bermaz Auto introduced the Mazda CX-30 at the beginning of this year, it offered only FWD versions with either SKYACTIV petrol or turbodiesel engines. Now, the range will include an AWD variant which is priced at RM176,059 (Peninsular Malaysia price, without insurance) for those who must have all four wheels powered.

The price is RM12,000 more than the high grade CX-30 which has the same 2-litre SKYACTIV-G petrol engine. This is not surprising since the i-ACTIV AWD system, which is quite sophisticated, adds cost, apart from the fact that the CX-30 is imported from Japan as a CBU (completely built-up) model.

Mazda CX-30

Mazda CX-30

Mazda CX-30

Mazda CX-30

The features and specs are the same as the CX-30 High Grade and you have a choice of 8 exterior colours – Soul Red Crystal, Machine Gray, Jet Black, Deep Crystal Blue, Sonic Silver, Snowflake White Pearl, Titanium Flash and Polymetal Gray Metallic.

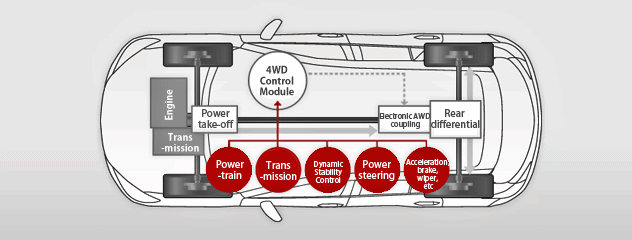

How Mazda i-ACTIV works
The AWD systems in today’s SUVs vary in sophistication and for Mazda’s i-ACTIV AWD system, the engineers redesigned the system’s hardware and software, taking a proactive approach to controlling drive to all four wheels,

Mazda i-ACTIV AWD

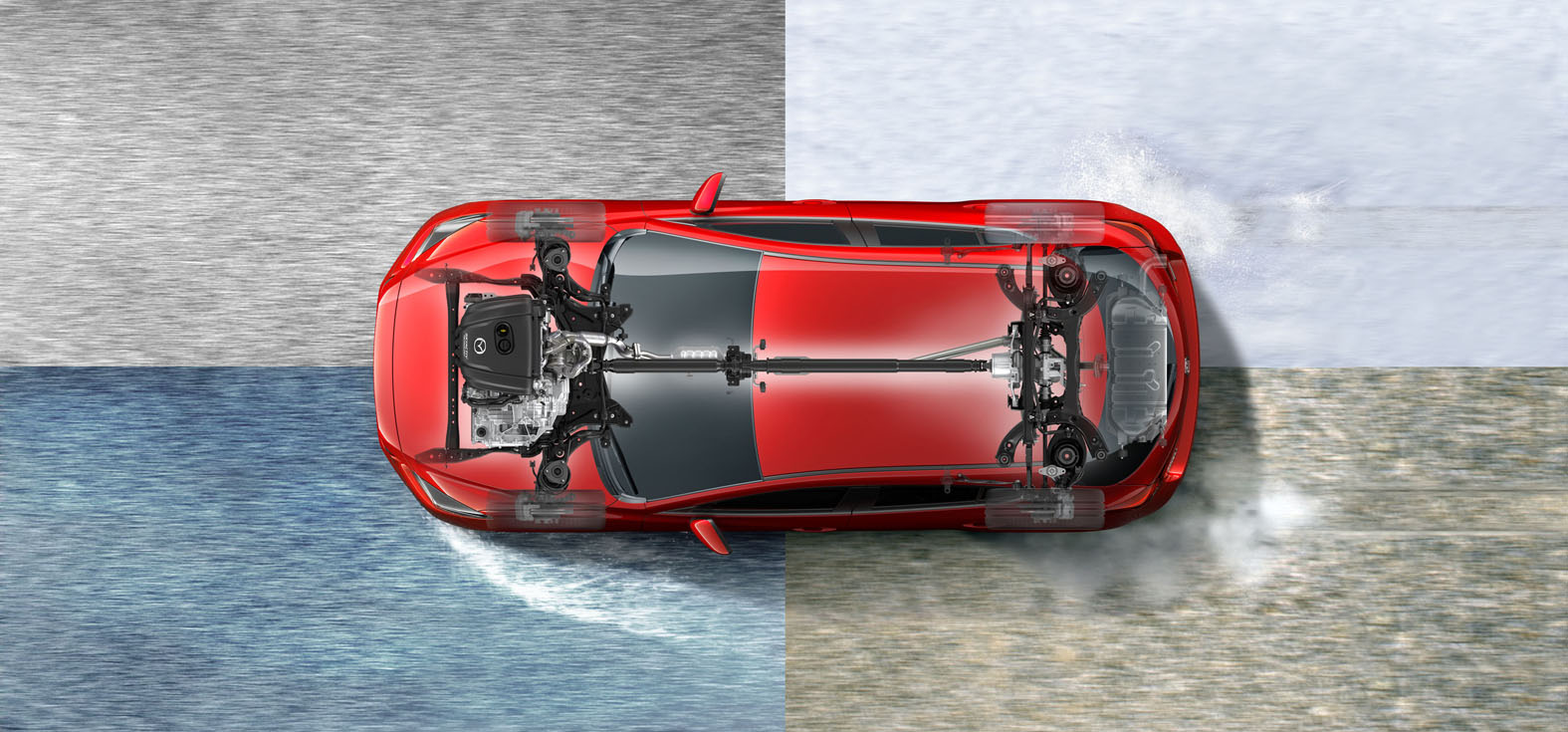

A fully-autonomous AWD system, i-ACTIV AWD constantly monitors surface conditions in real-time, watching for tiny variations in wheel speed that a driver would never notice. Proactively controlling the distribution of torque, which can range from full front-drive through to full 4-wheel-drive, the system not only provides solid and predictable handling for all-road performance, it makes driving on poor road surfaces more efficient by all but eliminating wasteful tyre-slippage.

Using a wide range of sensors to ‘paint’ a highly accurate picture of the overall driving scene, including road conditions and the driver’s intentions, i-ACTIV continuously calculates and adjusts the amount of torque sent to the rear wheels.

Mazda i-ACTIV AWD

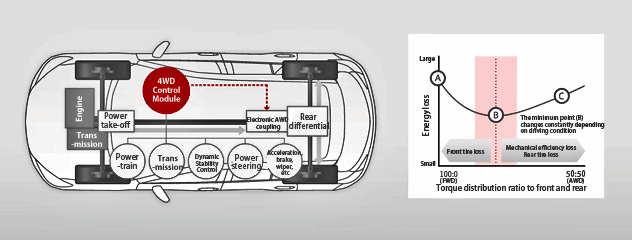

The perfect amount of torque is calculated and transferred to the rear wheels instantaneously (as and when needed). This is done by the AWD coupling unit which sends the appropriate drive force to the rear wheels. The system minimizes torque to the rear wheels when on dry road surfaces with good traction. The result is secure take-off, acceleration, cornering and braking, without the tyres slipping in any direction.

The sensors monitor for rain by watching the wipers and the external temperature gauge. The system can also measure how slippery the road surface is by comparing steering torque with the amount of current running through the electric power steering and the gradient of any slope by the degree of acceleration. In addition, the system precisely measures the speed of all four wheels and detects warning signs that indicate the wheels may be in danger of slipping. Along with engine driving force (applied to the front wheels), this is used to understand the driving conditions.

Mazda i-ACTIV AWD

The i-Activ AWD system also has an Off-road Traction Assist system. The system works by distributing the driving force to the tyres that are in contact with the road surface to maximize traction performance.

Additionally, a Torque Control System that allows a lag-free, near-instantaneous response. In order to help the rear-wheel drive unit respond more quickly, the Torque Control System transfers a very small amount of torque to the rear even in front-wheel drive mode. This is known as ‘stand-by torque’ and it helps the system make a smooth and instantaneous transition to AWD drive mode when the command is received to send torque to the rear wheels.

Proven SKYACTIV-G powertrain
As for the powertrain, this uses the proven SKYACTIV-G Direct Injection petrol engine. For the CX-30, the displacement is 1998 cc with a maximum output of 162 ps/213 Nm. Mazda engineers have been able to raise the compression ratio of 13:1 to enhance output without knocking issues even when using RON95 petrol.

Mazda SKYACTIV-G engine

Mazda CX-30

Only a SKYACTIV-DRIVE automatic transmission is available but using paddle shifters, the driver can also manually select any of the 6 forward speeds if preferred. While the driver can get sportier performance with a SPORT mode, the AWD system operates entirely on its own with no need for driver involvement.

Mazda CX-30

Extras for the base version
With the latest shipment of CX-30 2.0G version, Bermaz Auto has included a couple of new features – Mazda Advanced Keyless entry and Walk-Away Lock – for added convenience. Though priced at RM145,759 or RM18,300 less than the High Grade version, this version still has a very comprehensive list of equipment and features that justify the price. And as we noted during a test-drive, the CX-30 also has high quality in every aspect which gives a very premium image.

Visit www.mazda.com.my to know more about the CX-30 and other Mazda models in Malaysia.

COVID-19

PISTON.MY

Ever since the Mazda CX-30 made its debut at the Geneva Motor Show in March this year, Mazda fans in Malaysia have been eagerly awaiting its introduction in the market. Initially, Bermaz Motor, which distributes Mazda vehicles, was non-committal about whether it would include the CX-30 in its already wide range of models. Probably it was still negotiating the price with the factory as the model would be imported in CBU (completely built-up) form.

Local assembly – which can make the price more attractive – was not out of the question, but it’s always a matter of whether there’s enough volume to justify the investment. It is possible since Mazda Malaysia – the Mazda-owned assembly facility in Kulim, Kedah – is already exporting some of its output to Thailand and the Philippines. So the ‘magic number could be achieved with the combined volume for the three markets.

2020 Mazda CX-30 SKYACTIV-D

For now, the CX-30 will come from Japan and as reported last month, three variants will be offered. Two will have the 2-litre SKYACTIV-G petrol engine (163 bhp/213 Nm) and one will have a 1.8-litre SKYACTIV-D turbodiesel engine (114 bhp/270 Nm). Bermaz Motor must be more assured that owners of the CX-30 Turbodiesel won’t be inconvenienced having to look for stations selling diesel of the Euro5 grade, which is required for the engine. Some years back, the company was hesitant because the number of stations was limited but now all the brands sell Euro5 so it is readily available and customers shouldn’t be inconvenienced.

2020 Mazda CX-30 SKYACTIV-D

As announced earlier, the base CX-30 is priced at RM143,119.20 while the better-equipped CX-30 High is RM164,119.20. The CX-30 with the SKYACTIV-D engine is priced at RM173,027.70 which is on the high side but the SKYACTIV-D engine technology is pretty advanced and refined, and impressed everyone who has had a chance to experience its performance in other models. All prices don’t include insurance premiums and are for registration in Peninsular Malaysia.

Customers can order the SUV in Snowflake White Pearl, Soul Red Crystal, Machine Gray, Polymetal Gray, Deep Crystal Blue, Sonic Silver, Titanium Flash and Jet Black.

Bermaz Motor is displaying the CX-30 at its showrooms in Petaling Jaya and Glenmarie, Selangor, and we popped by to take a closer look. The unit we saw in the PJ showroom was the turbodiesel version and the first impression of the evolved KODO design language was how it has become so ‘matured’. The grille has gone through various forms but this latest one has an intricacy that draws the eyes to it. Clearly, Mazda’s designers treat each model as a work of art and even shape the body panels in such a way that light falling on them (and the shadows created) is stylistically distributed, flowing different depending on where you look from.

2020 Mazda CX-30 SKYACTIV-D

2020 Mazda CX-30 SKYACTIV-D

Size-wise, the CX-30 is positioned between the CX-3 and CX-5 (there is a CX-4 but it is exclusively for China) and for those who have found the CX-3 cramped, you now have a new choice. The styling elements are closer to the CX-5 than the CX-3 but then again, the latest CX-5 itself has the more mature KODO design features.

2020 Mazda CX-30 SKYACTIV-D

Inside, the CX-30’s cabin is yet another example of how Mazda is shaping itself as a premium brand. The change began with the previous Mazda3 and it shows itself in the materials and quality of finish, besides an extensive features list. Even the lowest priced version comes with a sunroof and head-up display although it doesn’t have leather upholstery for the seats.

2020 Mazda CX-30 SKYACTIV-D

2020 Mazda CX-30 SKYACTIV-D

2020 Mazda CX-30 SKYACTIV-D

2020 Mazda CX-30 SKYACTIV-D

2020 Mazda CX-30 SKYACTIV-D

The Mazda Connect Infotainment system is compatible with Apple CarPlay and Android Auto with the 8.8-inch colour display nicely slotted into a tray on top of the dashboard. The dashboard itself is minimalist in concept, keeping things simple for the driver to devote more attention to the drive.

2020 Mazda CX-30 SKYACTIV-D

The CX-30 has been tested by EuroNCAP and the version evaluated in Europe has scored the highest rating ever. The package of safety technologies applicable to all version is fairly extensive – including the Mazda G-Vectoring Control Plus Technology (GVC+) but the High versions also get an Adaptive Front-Lighting System, High Beam Control, Blind Spot Monitoring, and Radar Cruise Control.

As it’s the holiday period this week, why not drop by at one of the showrooms and check out the CX-30 yourself. If you love it, then you can book one and get it in 2020. That would be a great way to start a new year!

Visit www.mazda.com.my for updates on the CX-30 and when it will be launched in Malaysia.
